Garage air gets dirty—fast. Whether you’re sanding, grinding, painting, or just dragging in dust with your boots, the particles linger. For those who spend real time wrenching, welding, or cutting in the shop, clean air becomes more than just a comfort—it’s about keeping lungs and tools healthy. Enter the 20 inch box fan air filter mod. It’s simple, affordable, and surprisingly effective.
What It Is
This setup is exactly what it sounds like: a standard 20” box fan paired with a 20” x 20” HVAC furnace filter. It turns a cheap fan into a makeshift air filtration system that can knock down a good percentage of airborne dust and particulates. It’s not going to rival a dedicated air scrubber, but for general garage use, it punches way above its price.
The Setup
No engineering degree required. Here’s what you need:

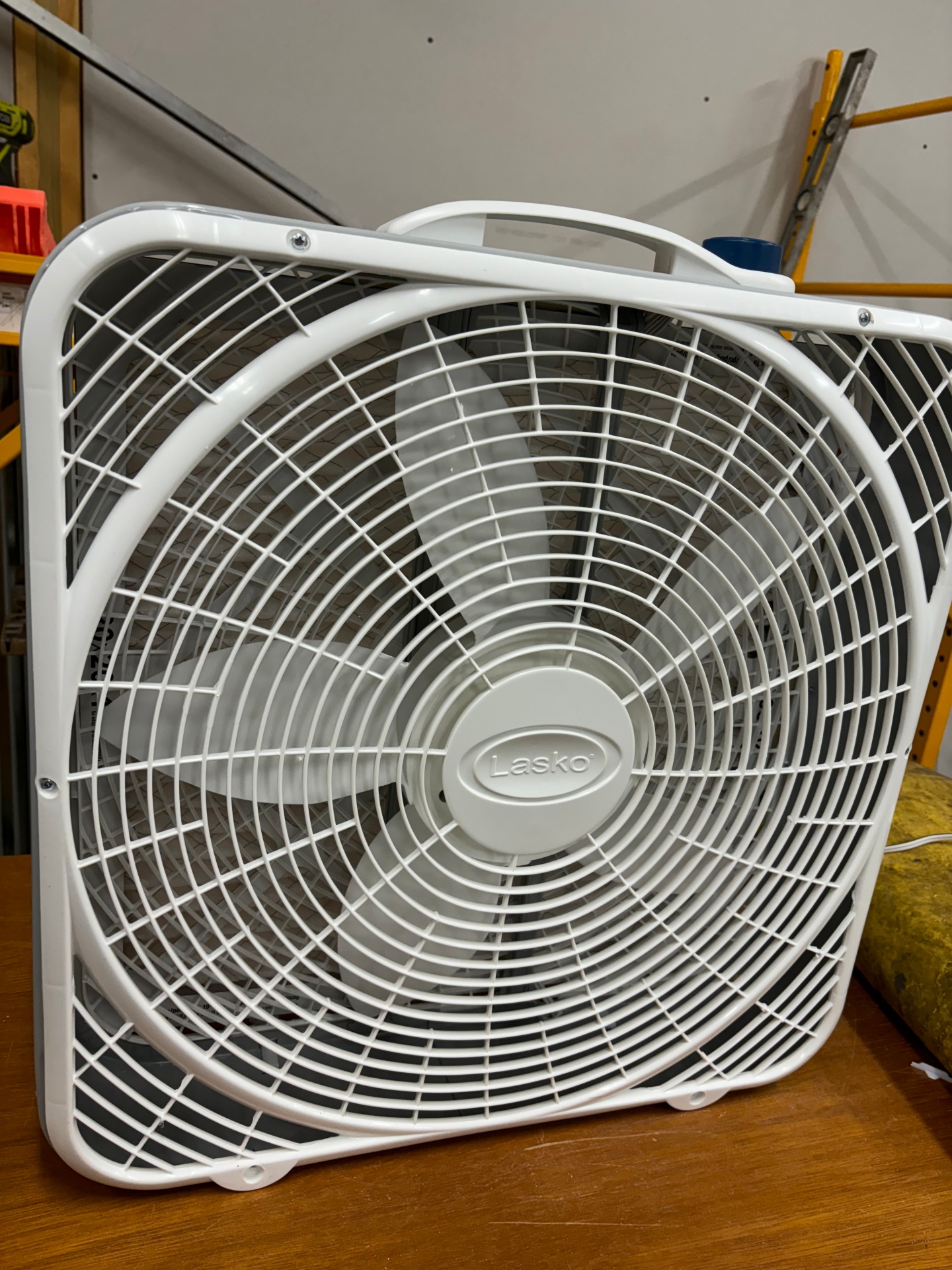

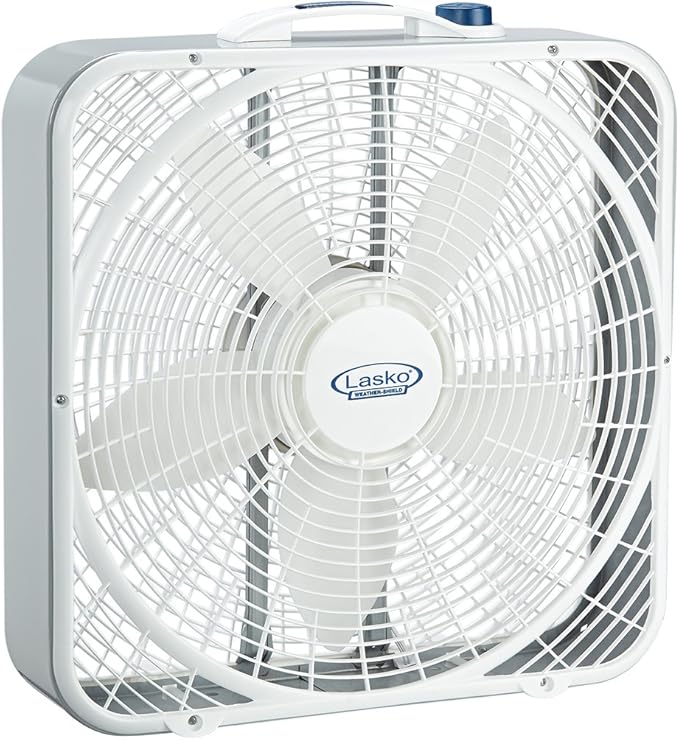

- A 20″ box fan (commonly found at big box stores for around $20)
- A 20” x 20” furnace filter (MERV 8 to 13 is ideal—higher catches more, but restricts airflow) I used a Filtrete MERV 11 I bought in a 4 pack from Amazon.
- Some way to attach the filter (tape, bungee cords, Velcro straps—whatever works) We used duct tape.
How to do it:
- Pick the filter side: Most filters have an airflow arrow. That arrow should point into the fan, so air flows through the filter first.

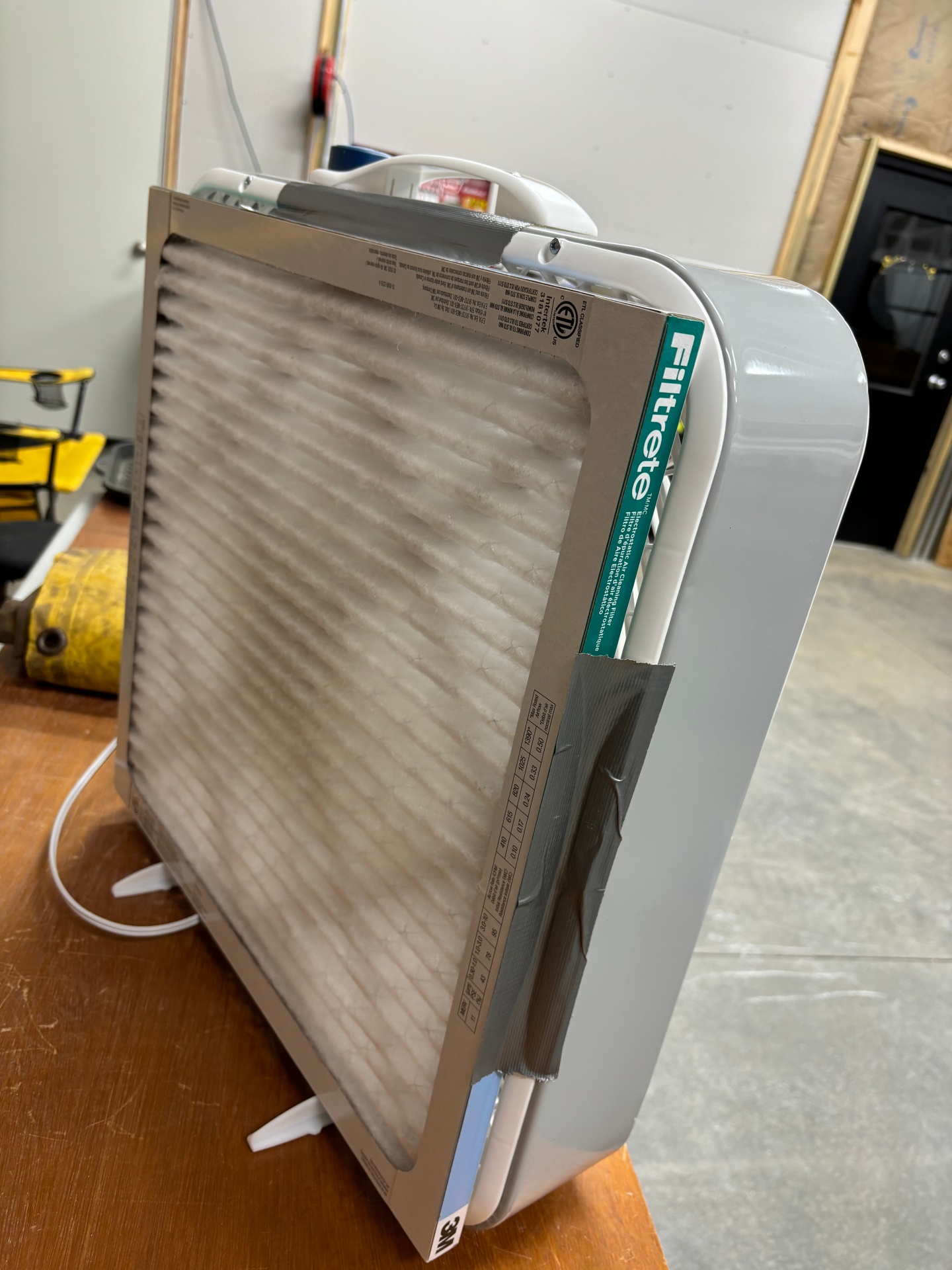

- Secure it to the intake side (the back of the fan): A tight seal helps efficiency, but it doesn’t need to be airtight.
- Plug in and let it run: Position the fan so it circulates air across your workspace. Leave it running while you’re working and for a while afterward.
Why It Works
The box fan draws in dusty air from the garage, pulling it through the furnace filter, which traps fine dust, pollen, and even some paint fumes depending on the MERV rating. While it doesn’t match a HEPA system or handle vaporized chemicals, it makes a noticeable difference when sanding, sawing, or doing bodywork. Plus, it’s quiet and portable.
Advantages
- Inexpensive: Most setups cost less than $40.
- Portable: Move it wherever you need it—on a bench, by the lathe, or near your welding table.
- Customizable: Use filters with different ratings for your needs (painting vs. dust control).
- Maintenance is easy: Just swap out the filter when it turns gray.
Watch-Outs
- Restricted airflow: Higher MERV filters can reduce fan output. MERV 13 works, but anything higher might strain the motor.
- Not for fumes alone: It won’t trap all VOCs or vapors. You still need ventilation if you’re using chemicals or paints.
- Clogging: Filters load up fast in a dusty space. If you’re doing heavy sanding or grinding, check it every few days.
Final Thoughts
This little shop hack won’t win awards for innovation, but it’s a practical upgrade that makes a noticeable difference in a garage. In fact it was more impressive than I thought it would be. I find leaving it on for a while after a project makes a huge difference. Just looking at the filter after some usage time you can see how much it can pull from the air. The fender repair project on my Jeep TJ involved a considerable amount of sanding that really put this filter to work.
It’s possible to make some further mods to allow quicker filter changes by installing some brackets to allow the filter to slide in and out..who knows if that will ever happen though.
Clean air is easier on your lungs and keeps fine dust from settling on tools and projects. If you’re running a sander one day and assembling a carburetor the next, that’s a combo worth having. For the DIY crowd who thrives on smart, functional solutions, this one’s hard to pass up.
